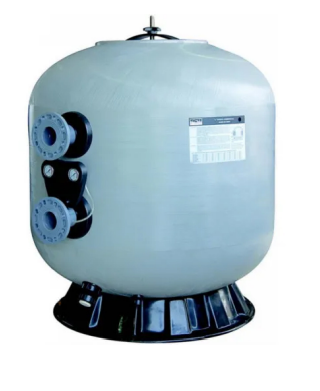

Commercial Filter
Features
Commercial Sand Filters are manufactures with high grade fiberglass and resins utilizing the latest engineering techniques ensuring high quality and superior strength for long life and durability. Just as sand is utilized to clean our oceans and rivers you can enjoy benefits of sand filtered swimming pool.
It is the best choice that applied to public pools, water amusement parks, aquariums and other water treatment facilities.
High Rate Sand Filters- the natural solution for perfectly filtered pool water.
Heavy duty UV resistant fiberglass tank.
Ergonomically designed six position multiport valves.
High performance filtering action.
Resistant to chemicals and corrosion.
A Unique and advanced design ensures fast draining and stabilizes water flow.
Pressure gauge for inspection of operating pressure.
Virtually maintenance free, simply backwash filters when required.
Sand drain plug for easier sand removal/replacement.
The Outlet Turbidity is Less than 2 NTU
Specifications
Maximum Working Pressure: 4.0 kg/cm2 (58 psi)
Testing pressure : 6 kg/cm2
Maximum Water Temperature : 50 C
| Modal | Design Flow m3/h | Filtration Aree m2 | Pipe Size lnch | Sand Required (kg) |
| SF- 1200 | 50.00 | 1.14 | 3 | 1100 |
| SF- 1400 | 76.00 | 1.56 | 4 | 1900 |
| SF-1600 | 100 | 2.01 | 4 | 2600 |
| SF-1800 | 129 | 2.54 | 4 | 3500 |
| SF-2000 | 1.57 | 3.14 | 6 | 4100 |
| SF-2400 | 218 | 4.34 | 6 | 8900 |
| Sf-2500 | 146 | 4.91 | 6 | 11000 |
Best Manufacturer and Service Provider of Commercial Filter in Ahmedabad.
We are Manufacturer and Service Provider of Commercial Filter in Ahmedabad. Call on +91-7990866062.
